| Florida Biodiesel, Inc. designs and
manufactures home-use and commercial biodiesel production systems.
Our fumeless processor design provides the safest and most cost effective means of making Biodiesel. |

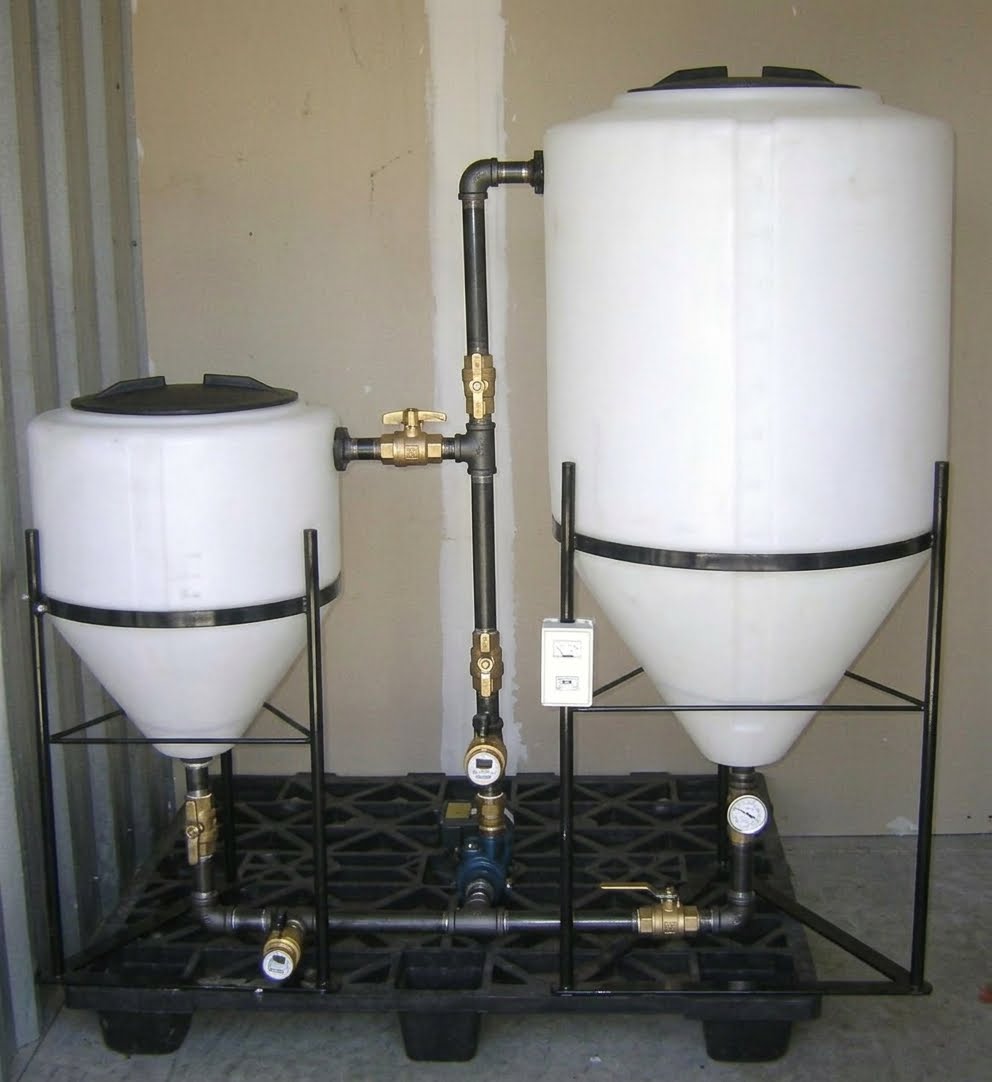

B-60 Home Biodiesel Kit
The B-60 home Biodiesel system is the easiest Biodiesel processor to use, and with 60 minutes of assembly time will allow you to safely produce 45 gallon batches of Biodiesel effortlessly!
Florida Biodiesel, Inc. provides our exclusive heating system - the "External Heat Exchanger" to heat the oil safely before and during the conversion process.
| B-60 Home Biodiesel System Features: | |
| -60
gallon reaction/separation/wash tank -15 gallon methoxide mix tank -330 gallon per hour heavy duty Biodiesel mixing pump -SS temp gauge -External Heat Exchanger -Cyclonic
Mixer |
B-60 Dry Wash Filter
The B-60 Dry Wash Filter is a one pass filter designed to be used with one pound of any Ion Exchange Resin.
One pound of Purolite will clean 300 gallons of Biodiesel at the rate of one gallon per minute.

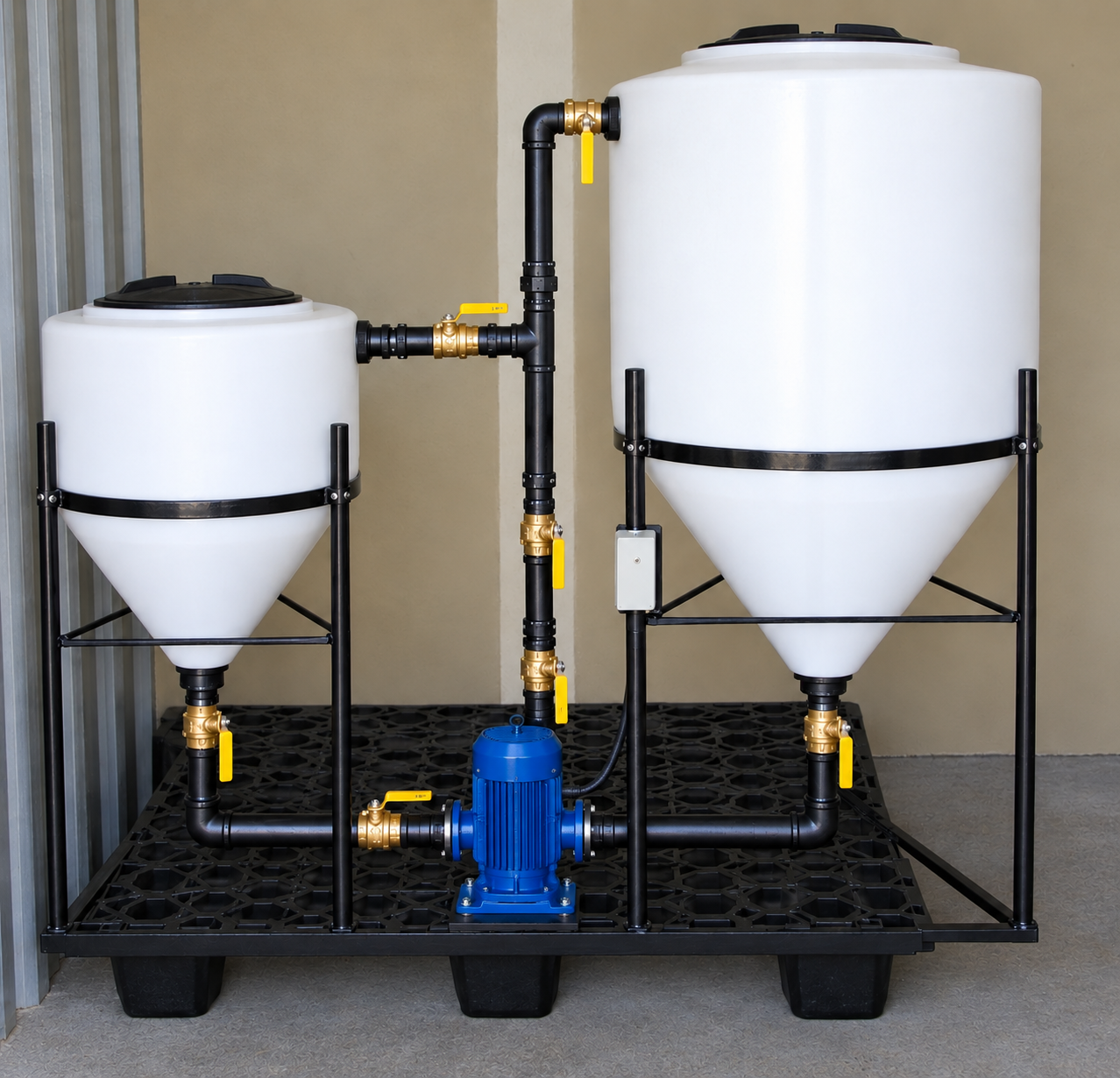

B-150 Agricultural Biodiesel Kit
The B-150 Agricultural Biodiesel system is designed for more robust applications, producing 115 gallon batches of Biodiesel.
Safety features include: All Steel plumbing, Brass ball valves, and a Biodiesel rated pump.
Florida Biodiesel, Inc. provides our exclusive heating system - the "External Heat Exchanger" to heat the oil safely before and during the conversion process.
| B-150 Agricultural Biodiesel System Features: | |
| -150
gallon reaction/separation/wash tank -30 gallon methoxide mix tank -90 gallon per minute heavy duty methoxide/Biodiesel mixing pump -SS temp gauge -External Heat Exchanger -Cyclonic
Mixer |
B-150 Dry Wash Filter
The B-150 Dry Wash Filter is a one pass filter designed to be used with two pounds of any Ion Exchange Resin.
Two pounds of Purolite will clean 600 gallons of Biodiesel at the rate of two gallon per minute.
B-500 Commercial Biodiesel Kit
The B-500 Commercial Biodiesel system is designed to produce 400 gallon batches of Biodiesel.
The safety features of this quality Biodiesel plant includes: Black Steel plumbing, Brass ball valves, and an explosion proof pump.
Florida Biodiesel, Inc. provides our exclusive heating system - the "External Heat Exchanger" to heat the oil safely before and during the conversion process.
| B-500 Commercial Biodiesel System Features: | |
| -500
Gallon HDP reactor module -110 Gallon HDP Methoxide module -112 GPM EXP Methoxide/Biodiesel pump -Methanol recovery module -SS temp gauge -Brass ball valves -External Heat Exchanger -Cyclonic
Mixer |
B-500 Continuous Batch Kit
The B-500cb Biodiesel Plant produces 400 gallon batches of Biodiesel, and has the capacity to produce 2.3 million gallons of Biodiesel annually.
The B-500 Biodiesel processor is the heart of the plant, with the addition of separation & washing modules can operate 24/7.
| B-500 Continuous Batch Biodiesel System Features: | |
|
-1 - 110 Gallon
Methoxide HDP module -1 - 500 Gallon HDP reactor module -4 - 500 Gallon HDP separation modules -2 - Ion Dry Wash towers -1 - Methanol recovery module -1 - 112 GPM EXP Methoxide/Biodiesel pump -2 - Biodiesel wash pumps -1 - Glycerin pump -SS temp gauge -Brass ball valves -External Heat Exchanger -Cyclonic
Mixer |
B-500 Ion Exchange Tower
The B-500 Ion Exchange Tower is designed to be sold in pairs as a "lead" tower and a "lag" tower.
Each tower holds 880 pounds of Purolite and has a flow rate of 5 gallons per minute.
| B-500 Ion Exchange Tower Features: | |
| -330
gallon Tower capacity -16 Inch top loading man-way -15 Inch cleanout -5 Gallon per minute Biodiesel pump -Dimensions: 93" x 32" -HD Plastic -Schedule 40 Flow Head -880 pounds (Ion Exchange Resin) capacity -Complete instructions

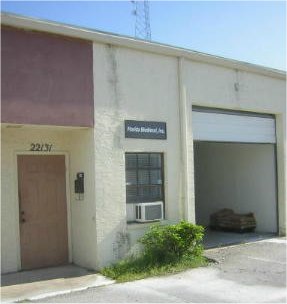

Our Manufacturing Facility
|
